Product Introduction

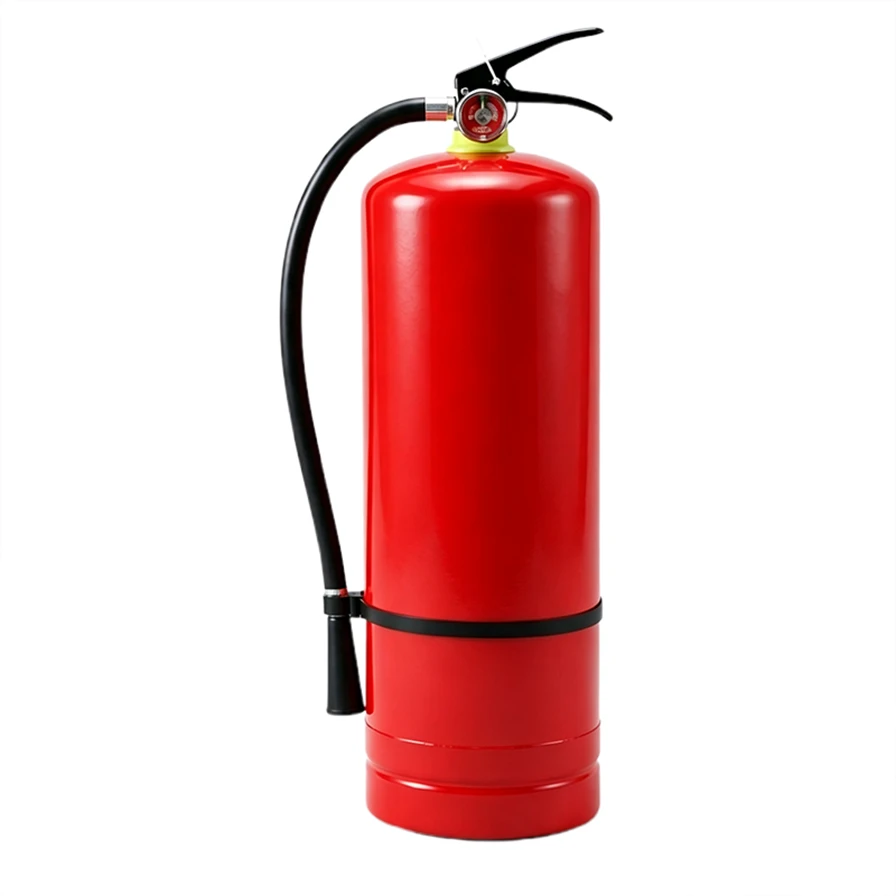

The 9kg ABC Dry Powder Fire Extinguisher is a stored-pressure fire protection device designed for extinguishing Class A, Class B and Class C fires. It contains 9kg of ABC dry powder extinguishing agent, which suppresses fire by interrupting the combustion chain reaction and covering the fire source.
Performance and Application
Compared with small-capacity portable extinguishers, the 9kg model provides a larger amount of extinguishing agent and longer discharge performance, making it suitable for commercial buildings, industrial facilities, warehouses and other areas requiring higher fire protection coverage.
Manufacturing Quality
Manufactured by Shaoxing Weimin Fire Fighting Equipment Co., Ltd., this extinguisher is produced through controlled cylinder manufacturing, assembly and inspection processes to ensure stable performance during storage and emergency operation.
ABC Dry Powder Fire Extinguisher
Product Structure
The 9kg ABC Dry Powder Fire Extinguisher consists of several key components:
- Carbon Steel Cylinder: Stores extinguishing agent and withstands internal pressure
- ABC Dry Powder Agent: Suppresses fire by interrupting combustion reaction
- Valve Assembly: Controls the release of extinguishing powder
- Pressure Gauge: Displays internal pressure status
- Discharge Hose: Directs powder flow toward the fire source
- Safety Pin: Prevents accidental operation
Working Principle
The extinguisher adopts a stored-pressure design. When the safety pin is removed and the valve handle is pressed, the internal pressure pushes the ABC dry powder through the discharge hose and nozzle.
Extinguishing Mechanisms
The dry powder works through three mechanisms:
- Interrupting the chemical chain reaction of combustion
- Separating the flame from combustible materials
- Reducing the contact between fuel and oxygen
This allows rapid suppression of different fire types covered by ABC classification.
Fire Protection Performance
Designed for Class A, B and C Fire Risks
The 9kg ABC Dry Powder Fire Extinguisher is suitable for multiple fire categories:
Class A Fire
For fires involving solid combustible materials such as:
- Wood
- Paper
- Textiles
- Plastics
Class B Fire
For fires involving flammable liquids such as:
- Fuel
- Oil
- Solvents
Class C Fire
For fires involving combustible gases such as:
- LPG
- Natural gas
The multi-class extinguishing capability makes it suitable for locations with different fire risks.
Technical Parameters
| Parameter | Value |
|---|---|
| Dry Powder Weight | 9 kg |
| Out‑diameter | 182 mm |
| Cylinder Height | 490 mm |
| Cylinder Weight | 3.25 kg |
| Extinguisher Weight | 12.7 kg |
| Material | St12 |
| Max Working Pressure | 14 Bar |
| Test Pressure | 25 Bar |
| Temperature Range | -30℃ ~ +60℃ |
| Carton Size | 20 × 20 × 59 cm / pc |
| Gross Weight | 13.0 kg |
Cylinder Manufacturing Process
Pressure-Resistant Cylinder Production
The cylinder is the core pressure-bearing component of the fire extinguisher. Shaoxing Weimin Fire Fighting Equipment Co., Ltd. controls the manufacturing process from raw material selection to finished cylinder inspection.
The production process includes:
Quality Control Process
Inspection from Components to Finished Products
To maintain product consistency, Weimin Fire applies quality control throughout production.
Inspection includes:
These procedures help ensure that each batch meets required performance specifications before shipment.
OEM & ODM Customization
Customized Fire Extinguisher Production
Shaoxing Weimin Fire Fighting Equipment Co., Ltd. provides customization options for customers with different market requirements.
Available services include:
- • Logo printing on cylinder
- • Customized labels and instructions
- • Different packaging designs
- • Product appearance customization
- • Specification adjustment according to market standards
The company supports customized production for distributors, fire safety companies and project suppliers.
Application Areas
Commercial Buildings
Suitable for:
- Office buildings
- Hotels
- Shopping centers
- Public facilities
Industrial Facilities
Used in:
- Manufacturing workshops
- Warehouses
- Equipment areas
- Production facilities
Transportation & Infrastructure
Applicable for:
- Parking areas
- Logistics centers
- Storage locations
Why Choose Shaoxing Weimin Fire Fighting Equipment Co., Ltd.
Shaoxing Weimin Fire Fighting Equipment Co., Ltd.
Shaoxing Weimin Fire Fighting Equipment Co., Ltd. focuses on the manufacturing of fire protection products, including dry powder fire extinguishers and other fire safety equipment.
Integrated Production Capability
The company manages key production stages including:
- Cylinder manufacturing
- Product assembly
- Quality inspection
- Packaging preparation
This integrated process helps maintain stable product quality and delivery performance.
Flexible Customization Support
With experience in export markets, Weimin Fire provides customized solutions for different product specifications, labels and packaging requirements.
Stable Mass Production
Standardized manufacturing processes and inspection procedures support consistent production for repeated orders.
FAQ
What is the main advantage of a 9kg ABC Dry Powder Fire Extinguisher?
The 9kg capacity provides a larger extinguishing agent volume, making it suitable for locations requiring wider fire protection coverage.
What types of fires can this extinguisher handle?
It is designed for Class A, B and C fires involving solid materials, flammable liquids and combustible gases.
Can the product be customized?
Yes. Weimin Fire provides OEM and ODM customization services including labels, logos and packaging.
How does Weimin Fire ensure product quality?
The company conducts material inspection, pressure testing, leakage testing and final product inspection during manufacturing.
